Specilializes producing masterbatch testing machine, inlcuded: lab spinning machine, BCF spinning machine, three color BCF machine, lab FDY /POY/BCF spinning test machine, etc.
Machine Description

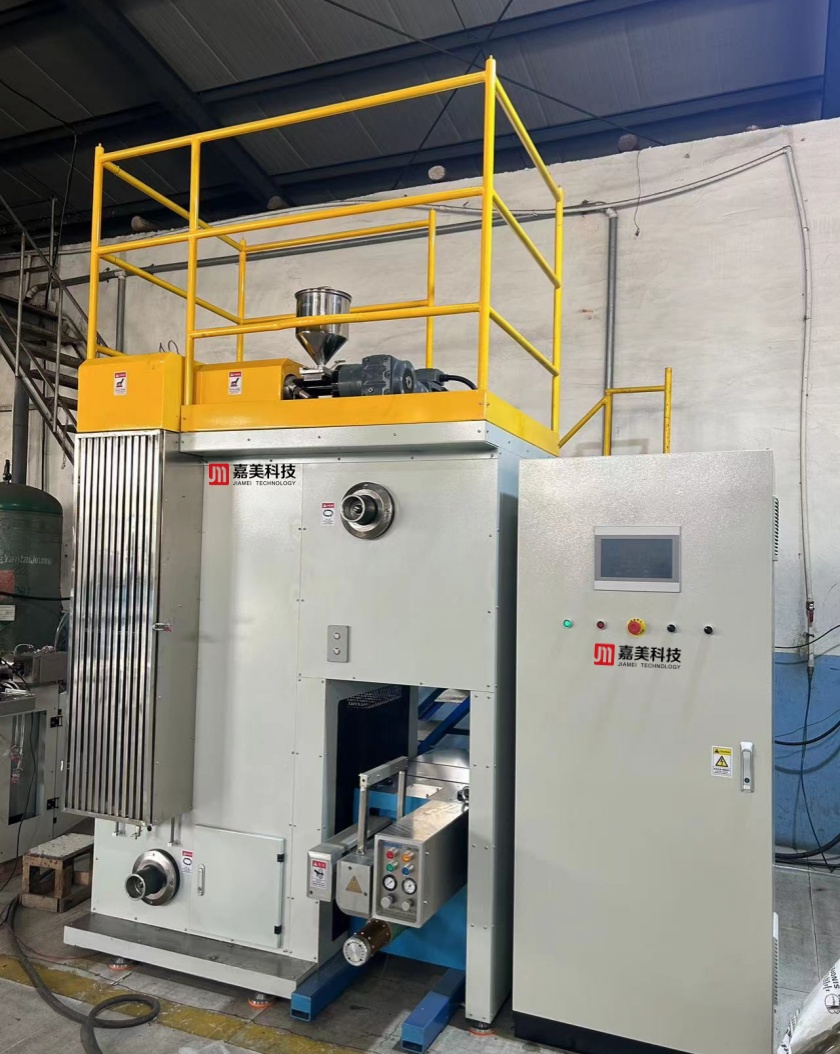

mini color master batch test spinning machine is used for testing color , then used in the big spinning line to save time and material, very easy operate, and low power consumption, short time to heat, high efficiency.
1) max 1000-1200m/min.
2) One bobbin, capacity:4-5kg/h
3) power: < 10kw
Technical Parameter
| Item | FDY | POY | BCF | ATY | DTY |
| Pos. | 1 | 1 | 1 | 1 | |
| Fiber Denier | 500-1500D (single yarn) | ||||
| Spinneret/Position | 1 | 1 | 1 | 1 | 1 |
| Winder Speed | 500-1200m/min | ||||
| Capacity (900d) | 4kg/hr | 4kg/hr | 4kg/hr | 4kg/hr | 4kg/hr |
| Screw Dia. | 30mm | 30mm | 30mm | 30mm | 30mm |
| Power | 20kw | 20kw | 20kw | 20kw | 20kw |
| Machine Size | 3*3*4.5m | ||||
Machine Details
Application
POY Lab Spinning Yarn Color Testing Machine is mainly used for the POY multifilament yarn color testing, low waste and consumption.
