FDY PP Polypropylene wig yarn synthetic hair making machine

Share

We are professional manufacturer engaged in multifilament chemical fiber spinning machinery with good experience of 30 years.


1. Product Description

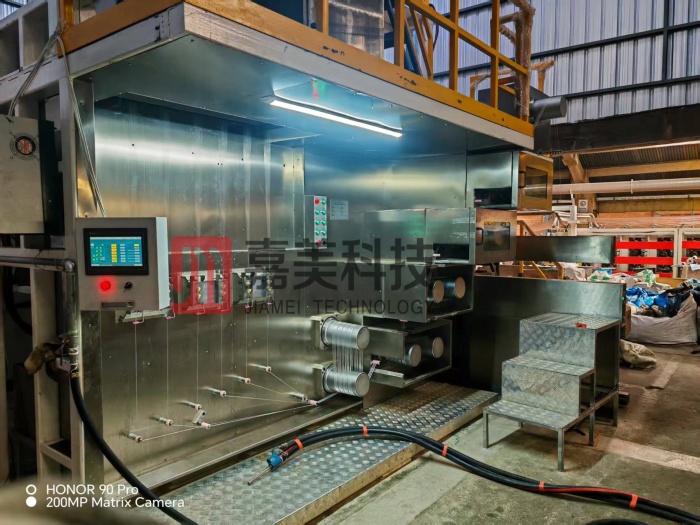

FDY PP Polypropylene wig yarn synthetic hair making machine

FDY PP Polypropylene wig yarn synthetic hair making machine

1) Low power consumption, 1-1.2kw/1kg yarn

2) Fast asscmble and trainning, professional engineer 10-15days

3) Reasonable design to make high tenacity yarn 7-7.5g/d

4) Easy operate, PLC control + touch screen

5) It require the building roof 7m

6) Electric parts from famous JAPAN brand


2. Technical Data:

ItemUnitModel


JM261JM241JM181JM161JM141JM131JM121
No. of posPos.2211111
titerdtex150-4500
No. of ends/pos.Spinner/pos6486432
Spinneretmm160160160160160140140
Metering pumpcm3/rpm12cc/rpm
Winding speedM/min2000-2400
Output/24hr(900d)kg34562304230417281152864576
Dia. of screwmm1201059090707055
L/D30:1
Drive powerkw90403042.37353532
Heating powerkw190907593.59062.560


3. Production Process:

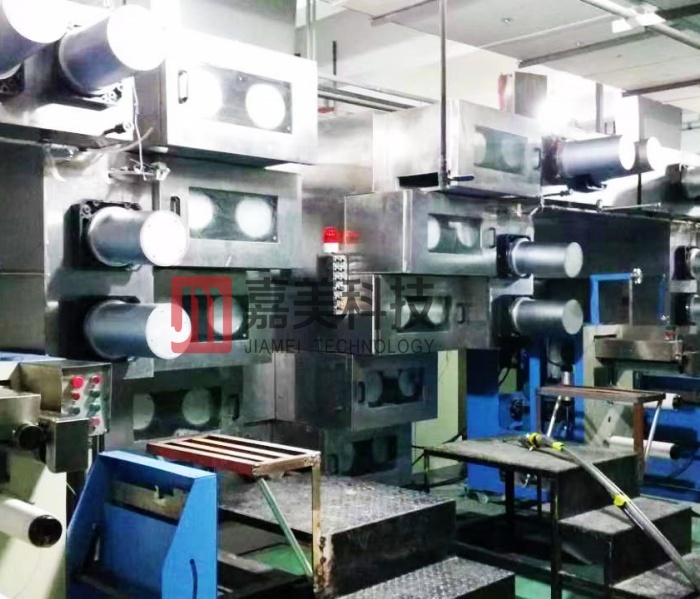

Technical process of FDY wig yarn making machine:

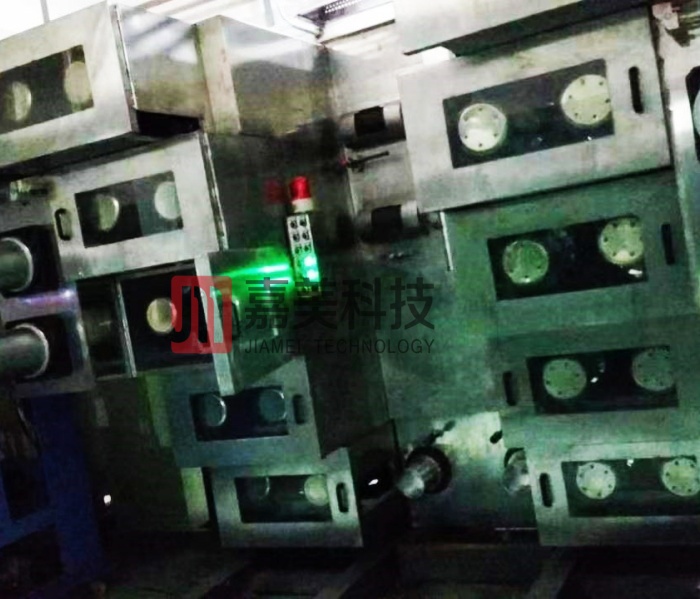

Chips→ extruder→ extruding head →melt pipe with static mixer→ spinning beam with oil heating →quenching delay→ quenching chamber → oiling system → feeding roller →migration nozzle→ four pairs of hot godet rollers→ inter lacing jets→ take-up winder →final product

FDY PP Polypropylene wig yarn synthetic hair making machine


3. Final Products:

With high tenacity 6.5-7.5g/d for raw white yarn, 5-6g/d for color yarn.

With color masterbatch dosage for color injection.

FDY PP Polypropylene wig yarn synthetic hair making machine

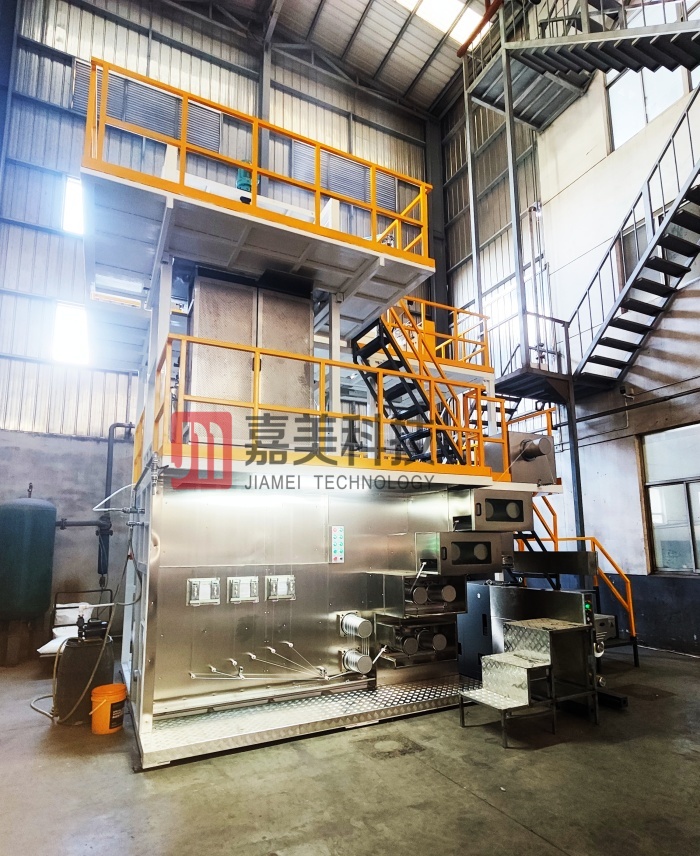

4. Machine Parts:

FDY PP Polypropylene wig yarn synthetic hair making machine

Extruder Part of FDY wig yarn making machine:

1. Automatic hopper loader

2. Extruder head (with measuring head)

3. Spinning beam

4. Metering pump

5. Spinnneret + packs


FDY PP Polypropylene wig yarn synthetic hair making machine

Air Cooling Blower of FDY wig yarn making machine:

1. Blowing area:W 1250mm*H1800mm

2. With filter

3. With air fan,frequency control

4. It has several layers

5. It can be opened from the side. It's very convenient


FDY PP Polypropylene wig yarn synthetic hair making machine

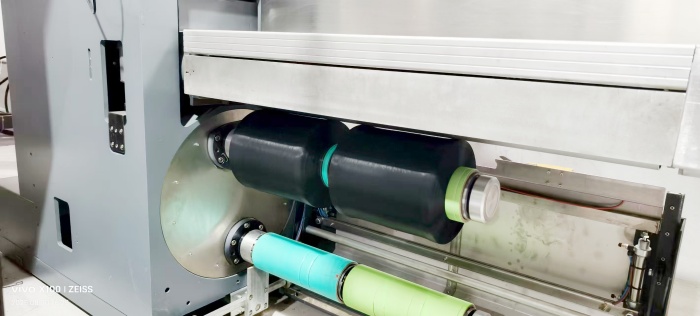

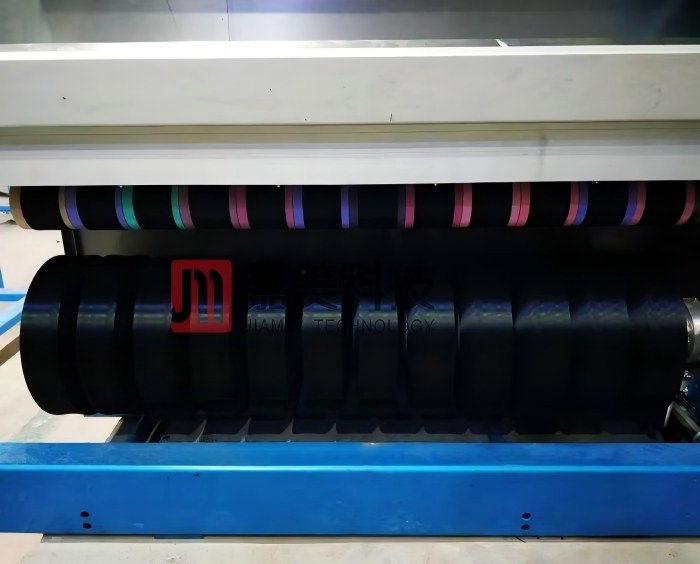

High Speed Winding Machine of FDY wig yarn making machine:

1. 3 ends, 4 ends, 6 ends, 8 ends, 12 ends

2. 1600-2600m/min

3. Paper bobbin size:Φ110×Φ125×230mm

4. Max spool dia: Φ420mm , Traverse mode

5. Famous winder brand


6. Packing & Delivery

FDY PP Polypropylene wig yarn synthetic hair making machine


7. Installation & Training

FDY PP Polypropylene wig yarn synthetic hair making machine

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

* With online device, our team is 24hr at your service.


After-Sales Service

* Come engineer help set up machine, take 12-15 days for assemble and trainning. 3-4 days for set up, 5-6 days for training.

* The customer should prepare 3-5 workers for learn and operate the machne.

* With online device, our team is 24hr at your service.
